ZEBRA DS2278 (1d/2d)

Lecteur de codes-barres Voyager 1200g

Le lecteur de codes-barres Voyager 1200g de Cathedis est conçu pour la performance et la polyvalence. Avec sa technologie de détection automatique, il assure une lecture rapide et précise des codes-barres linéaires, même endommagés ou de mauvaise qualité.

Domaines d'application :

• Logistique et express : scan des étiquettes de livraison et des bordereaux.
• Santé : scan des bracelets patients et des étiquettes de laboratoire.
• Commerce de détail : scan des étiquettes de prix et des reçus.
• Centres de distribution : suivi des colis et des étiquettes d'expédition.

Points forts :

• Lecture omnidirectionnelle des codes-barres 1D.
• Technologie de détection automatique pour une efficacité accrue.
• Conception ergonomique et intuitive pour un confort d'utilisation.
• Résistant aux chocs et aux chutes, idéal pour les environnements exigeants.

Inclus dans la livraison :

• Câble USB pour une connexion rapide.



PHYSICAL PROPERTIES

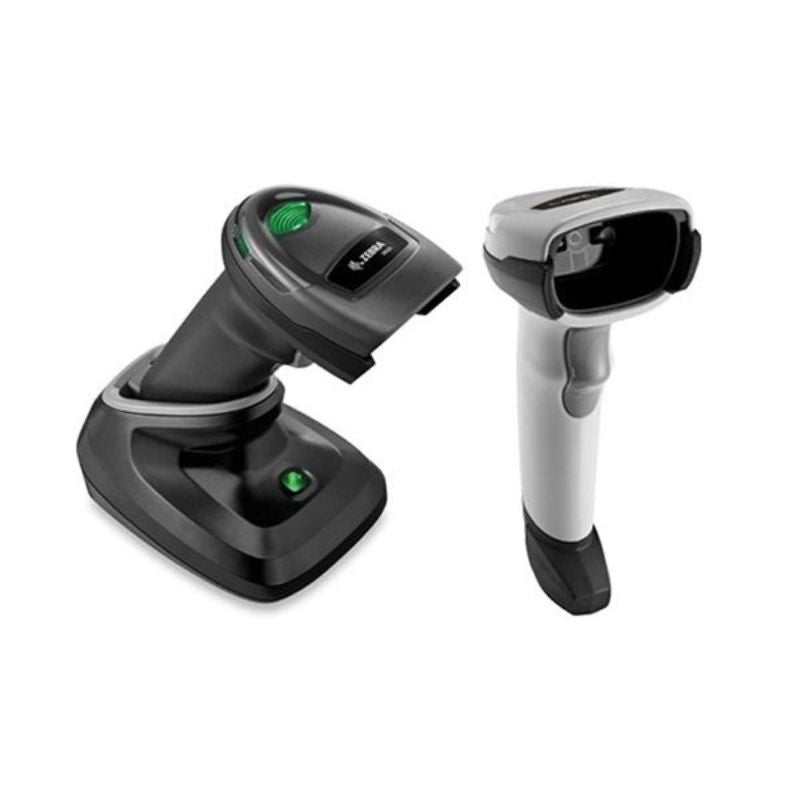

Dimensions	Wired DS2208: 6.5″ H x 2.6″ W x 3.9″ D 16.5 cm H x 6.6 cm W x 9.9 cm D Wireless DS2278: 6.9″ H x 2.6″ W x 3.5″ D 17.5 cm H x 6.6 cm W x 9.0 cm D Presentation Cradle: 2.8″ H x 3.7″ W x 4.8″ D 7.2 cm H x 9.4 cm W x 12.2 cm D
Weight	Wired DS2208: 5.7 oz. / 161.6 g Wireless DS2278: 7.5 ounces. / 214 gr Presentation Slot: 5.2 oz. / 151 g
Input Voltage Range	DS2208/DS2278 and Slot: 4.5 to 5.5 VDC Host Powered; 4.5 – 5.5 VDC External Power Supply
Slot Interface	–
Operating Current Rated Voltage (5.0V)	250 mA (typical). (Note: Auto Aim and Illumination on Image Acquisition)
Standby Current at Nominal Voltage (5.0V) (idle)	150 mA (typical). (Note: Auto Aim On)
Presentation Cradle and Micro USB Cable	500 mA (typical) Standard USB; 1100mA (typical) BC 1.2 USB
Power supply	–
Color	Nova White, Twilight Black
Supported Host Interfaces	USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX
Keyboard Support	Supports 90+ international keyboards
User Indicators	Direct Decode Indicator; good decoding LEDs; Rear view LEDs; beeper (adjustable tone and volume)
FIPS Security Certificate	–
TAA Compliance	–
Electronic Article Surveillance	–



PERFORMANCE CHARACTERISTICS
Motion Tolerance (Hand)	Up to 5 inches/13 cm. 13 miles per second for UPC
Scroll Speed (Hands Free)	Up to 30.0 inches/76.2 cm. 13 miles per second for UPC
Light source	Targeting Pattern: Linear 624nm Yellow LED
Lighting	(2) 645nm Super Red LEDs
Viewer Field of View	32.8° H x 24.8° D Nominal
Image sensor	640×480 pixels
Browser Type	–
Scan Rate	–
Minimum Print Contrast	25% minimum reflectance difference
Skew/Pitch/Roll Tolerance	+/- 65°; +/- 65°; 0-360°
Scan Pattern	–
Scan Angle	–
Scan Speed	–
Working hours	–
Minimum Element Resolution	Code 39 – 4.0 miles; Code 128 – 4.0 miles; Data Matrix – 6.0 mil; QR Code – 6.7 million



VIEW FEATURES
Graph Format Support	–
Image quality	–



USER ENVIRONMENT
Operating temperature	DS2208/DS2278 Imagers: 32.0° to 122.0° F/0.0° to 50.0° C Presentation Slot: 32.0° – 104.0° F/0.0° – 40.0° C
Storage temperature	-40.0° to 158.0° F/-40.0° to 70.0° C
Moisture	5% to 95% RH, non-condensing
Release Specification	Designed to withstand multiple drops from 5.0 ft./1.5 m to concrete
Tumble Specification	Designed to withstand 250 tumbles with a 1.5 ft./.5 m rollover
Environmental Sealing	IP52
Electrostatic Discharge (ESD)	DS2208/DS2278 and Slot CR2278: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect
Approved Cleaners	–
Barcode Symbols	–
Immune to Ambient Light	0 to 10,000 Foot Candles/0 to 107,600 Lux
Call Tone	–
Call Tone	–



RADIO FEATURES
Bluetooth Radio	Line-of-sight outdoors: Class 2: 30 ft minimum when paired with CR2278 sled. (10.0 m) and a maximum of 300 ft. (100.0 m). Environmental factors can affect the results. Serial Port and HID Profiles; output power adjustable from 2.0 dBm in 8 Steps
Adjustable Bluetooth Strength	–



BATTERY
Battery Capacity/Battery Type	2,400 mAh Li-Ion Battery
PowerPrecision+ Li-Ion Battery	–
Power Cover Capacitor	–
Scans Per Battery Charge2	110,000 scans at 60 Scans Per Minute or 50,000 scans at 10 Scans Per Minute
Runtime per Full Charge(Charge time)	84.0 Hours
Charge Time (From Idle)	14 Hours Shift Hours / Full Charge Hours
Standard USB	“14 Hour Shift Hour: 4 Full Charge Hours: 17”
BC1.2 USB	“14 Hour Shift Hour: 1 Full Charge Hours: 5”
External 5V Source	“14 Hour Shift Hour: 1 Full Charge Hours: 5”
MicroUSB	“14 Hour Shift Hour: 1 Full Charge Hours: 7”
BC1.2 MicroUSB	“14 Hour Shift Hour: 1 Full Charge Hours: 4”



EDIFIER
Electrical Safety	EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07
Environmental	RoHS EN 50581
Technical requirements	–
LED Security	IEC 62471
IT Emissions	EN 55032 (Class B)
IT Immunity	EN 55024
Laser Safety	–
Harmonic Current Emissions	EN 61000-3-2
Voltage Surge and Vibration	EN 61000-3-3
Radio Frequency Devices	47 CFR Part 15, Subpart B, Class B
Digital Apparatus	ICES-003 Issue 6, Class B
EMI/RFI	–



DESCRIPTION ABILITIES
Input Voltage Range	–
1D	–
2D	–
OCR	–
Digimarc	–
Minimum Element Resolution	–



Subject to the terms of

WARRANTY
Warranty	Zebra’s hardware warranty statement, the DS2200 Series is warranted to be free from defects in workmanship and materials from date of shipment for the following period: DS2208 Wired Scanner: Sixty (60) months; DS2278 Wireless Scanner: Thirty-six (36) months; CR2278 Presentation Holder: Thirty-six (36) months; Battery: Twelve (12) months. For a complete Zebra hardware product warranty
Cordless Accessories	CR2278 Presentation Cradle, Spare Battery, Micro USB Cable
Recommended Services	Zebra OneCare Selection; Zebra OneCare Basic



UTILITIES AND MANAGEMENT
123Scan	Programs scanner parameters, upgrades firmware, provides scanned barcode data, and prints reports. www.zebra.com/123Scan
Symbol Browser SDK	Creates a full-featured scanner application with documentation, drivers, test utilities, and sample source code. www.zebra.com/scannersdkforwindows
Browser Management Service (SMS)	Remotely manage your Zebra scanner and query asset information. www.zebra.com/sms



WIRELESS CONNECTION
Radio	–
Data rate	–
Radio Range	–



DESCRIPTION INTERVALS
Code 39	Resolution: 5 million Close: .2in./.5cm Far: 6.0 inches/15.2 cm.
Code 128	Resolution: 5 million Near: 0.6 inch/1.5 cm. Far: 4.0 inches/10.1 cm.
PDF417	Resolution: 6.7 million Close: 0.8 inch/2.0 cm Far: 5.7 inches/14.5 cm.
UPC	Resolution: 13 miles (100%) Close: .5 inch/.1.3 cm Far: 14.5 inches/36.8 cm.
Data matrix	Resolution: 10 million Near: .3in./.8 cm. Far: 6.2 inches/15.7 cm.
QR	Resolution: 20 million Close: .0 inch/.0cm Far: 11 inches/27.9 cm.
Code 39: 2 million	–
Code 39: 3 million	–
Code 39: 4 million	–
Code 39: 5 million	–
Code 39 – 7.5 miles	–
Code 39 – 10 miles	–
Code 39: 20 miles	–
Code 39: 40 miles	–
PDF 417: 4 miles	–
DataMatrix: 10 miles	–
QR Code: 10 million	–
QR: 20 miles	–
Code 128: 2 million	–
Code 128: 3 miles	–
Code 128: 5 million	–
Code 128: 15 miles	–
100 mile reflector	–
100 mil (paper)	–
